Pilates Reformer Assembly Guide: Step-by-Step for Beginners (Australia)

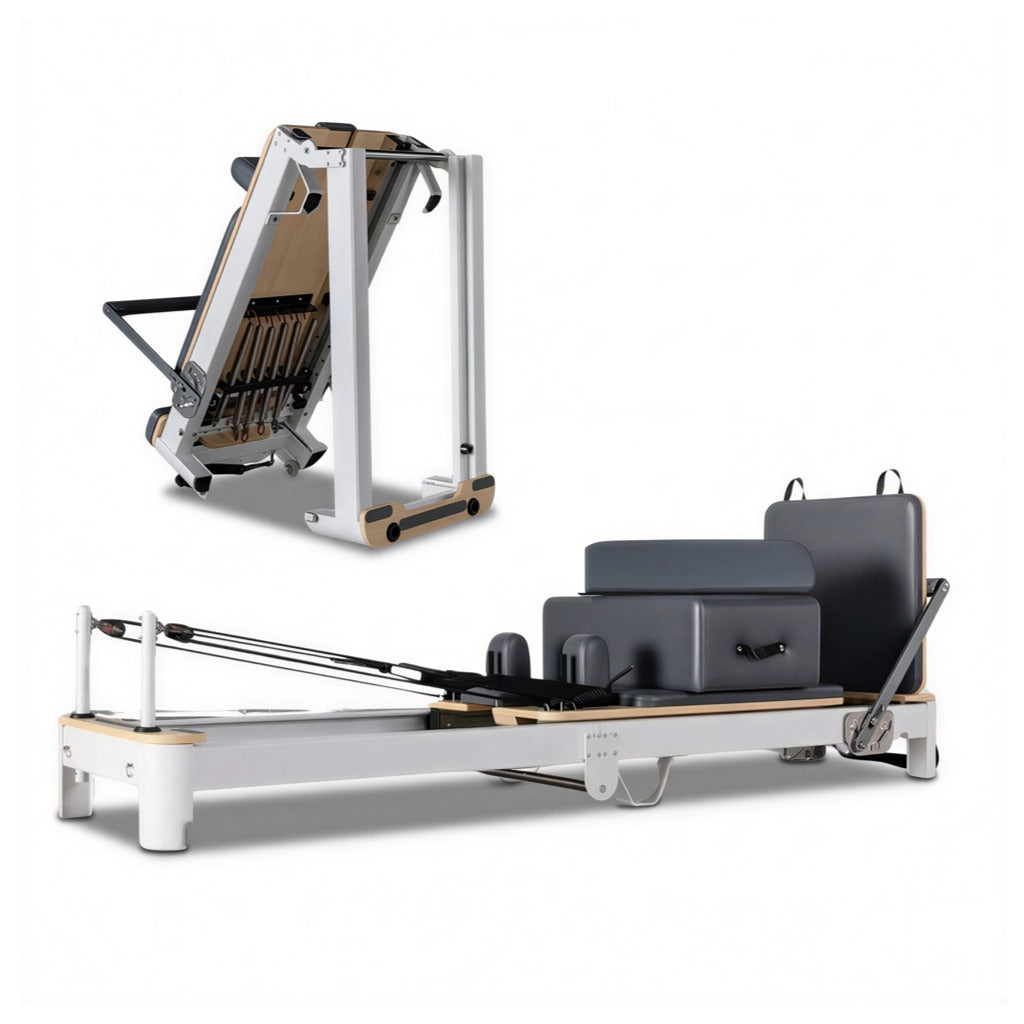

Assembling a pilates reformer for the first time takes most beginners between 45 and 90 minutes, depending on the model. The three reformers in the ZM Fit range — the PM5429WH foldable model (AUD $1,529), the PM5396GY professional model (AUD $1,781), and the PM5445BE full-track model (AUD $2,249) — all ship to Brisbane and across Australia with clearly labelled hardware packs and illustrated manuals. This guide walks you through every stage: unboxing, tools, step-by-step assembly, a pre-use safety check, and the five mistakes that send most beginners back to step one.

1. What Comes in the Box: Unboxing Your Pilates Reformer

All three models arrive in double-walled cardboard cartons with foam corner protection. Before you cut any cable ties or discard packaging, lay every component on a clean floor and cross-reference against the packing list. Here is what you should find across the range:

Pro tip: Keep the original packaging for at least 30 days. If a component is damaged in transit — rare, but it happens — you will need the box for a warranty claim under the 12-month warranty that covers all three models.

2. Tools Required and Setup Space

The hardware pack includes the Allen keys you need, but having a few extra tools on hand saves time and protects the aluminium frame from scratches.

Tools checklist:

• Allen key set (3 mm, 4 mm, 5 mm — included in hardware pack)
• Adjustable spanner or 13 mm open-end wrench
• Rubber mallet (for seating shoulder rest pins without marking the frame)
• Tape measure
• Torque screwdriver (optional but recommended for the PM5396GY and PM5445BE precision spring systems)

Space requirements: Clear a rectangle of at least 3.0 m × 1.2 m for assembly, plus 0.5 m on each long side so you can move around the frame. The PM5429WH folds to roughly 90 cm × 60 cm for storage, so a spare bedroom or garage corner works well in Brisbane homes where space is at a premium. The PM5445BE full-track model measures approximately 240 cm × 60 cm when fully assembled — measure your doorways before delivery day.

Floor surface: Assemble on a non-slip surface. Polished timber or tiles in Queensland homes can cause the frame to shift mid-assembly. A yoga mat or moving blanket under the frame prevents scratches and keeps components in place.

3. Step-by-Step Assembly Instructions

These steps apply to all three models. Where a step differs between the foldable PM5429WH and the fixed-frame PM5396GY / PM5445BE, the difference is noted.

Step 1 — Lay out the main frame

Place the main aluminium frame flat on your prepared surface. On the PM5429WH, locate the fold hinge in the centre of the frame and confirm it is in the fully open, locked position before attaching any other components. You will hear a distinct click when the hinge locks. On the PM5396GY and PM5445BE, the frame ships as a single rigid piece.

Step 2 — Attach the end caps and leg risers

Thread the M8 bolts (silver, 35 mm) through the pre-drilled holes in each end cap. Hand-tighten first, then use the 5 mm Allen key to bring each bolt to firm resistance. Do not fully torque yet — you may need minor adjustments in later steps. The PM5445BE has four leg risers rather than two; attach all four before moving on.

Step 3 — Install the carriage

Tilt the frame on its side (have a second person hold it steady if possible). Slide the carriage wheels into the aluminium track channels from the headrest end. You should feel the wheels seat into the channel with light pressure — do not force them. Once seated, the carriage should glide smoothly with no lateral wobble. All three models are rated to 150 kg user weight, and the carriage track tolerances are machined to commercial standards.

Step 4 — Attach the shoulder rests

Insert the shoulder rest pins into the pre-drilled holes at the headrest end of the carriage. Use the rubber mallet to tap them fully home — hand pressure alone is rarely sufficient. Confirm each rest is level by placing a small spirit level across both rests before tightening the locking bolts.

Step 5 — Mount the footbar

The footbar bracket slots into the receiver at the foot end of the frame. Insert the bracket, align the bolt holes, and thread the M6 bolts (black, 25 mm) finger-tight. The footbar on all three models has 3 height positions; set it to the middle position for initial assembly, then adjust once you begin training.

Step 6 — Attach the resistance springs

This is the step most beginners rush — and the most important one to get right. Each spring has a colour-coded end cap indicating resistance level. Hook the looped end onto the spring bar at the foot of the frame, then hook the other end onto the carriage spring bar. On the PM5396GY, the precision spring system uses a secondary locking clip; confirm the clip is fully engaged before applying any load. Attach springs in pairs (left and right simultaneously) to keep the carriage centred.

Step 7 — Thread the ropes and pulleys

Feed each rope through its corresponding pulley wheel, starting from the foot-end pulley and working toward the headrest. The rope should sit in the pulley groove, not ride up on the flange. Attach the loop handles to the rope ends using the carabiner-style clips included in the hardware pack. Pull each rope to its full extension and confirm the clip is locked before releasing.

Step 8 — Final frame torque

Now that all components are in position, go back and fully torque every bolt. Work in a consistent pattern — foot end to head end, left side then right side. For the PM5396GY and PM5445BE, the recommended torque for M8 frame bolts is 18–20 Nm if you are using a torque screwdriver.

4. Safety Check Before First Use

Do not step onto the carriage until you have completed every item on this checklist. The 12-month warranty covers manufacturing defects, but it does not cover damage caused by incorrect assembly.

• Carriage glide test: Push the carriage from one end to the other by hand. Movement should be smooth and silent. Any grinding or clicking indicates a wheel is not properly seated in the track channel.
• Spring hook security: Tug each spring firmly (approximately 10 kg of force) and confirm neither hook disengages. A spring that releases under load is a serious injury risk.
• Shoulder rest stability: Press down on each shoulder rest with your full body weight. There should be zero lateral movement.
• Footbar lock: Push the footbar toward the frame with both hands. It should not shift position. If it moves, re-seat the bracket and re-tighten the bolts.
• Rope symmetry: Hold both rope handles at the same time and pull to full extension. Both ropes should reach the same length. Unequal rope length causes asymmetric loading and can lead to injury over time.
• Frame level: Place a spirit level on the carriage surface. The frame should be level within 2 mm across its full length. Adjust the leg risers if needed — all models have adjustable feet for uneven Queensland floors.
• Bolt check: Run your fingers over every bolt head. Any bolt that turns with finger pressure needs to be re-tightened with the Allen key.

5. Common Assembly Mistakes and How to Avoid Them

After reviewing assembly feedback from customers across Brisbane, Queensland, and interstate, these are the five errors that come up most often:

Mistake 1 — Tightening bolts fully before all components are attached

Fully torquing the end caps before the carriage is installed makes it nearly impossible to align the track channels correctly. Always hand-tighten first, fit all components, then do a final torque pass.

Mistake 2 — Attaching springs one at a time

Attaching all springs on one side before the other pulls the carriage off-centre and puts uneven stress on the track. Always attach springs in left-right pairs.

Mistake 3 — Skipping the rope symmetry check

Ropes that are threaded through the wrong pulley sequence will be unequal in length. This is not obvious until you are mid-exercise. Thread both ropes simultaneously and compare length before attaching the handles.

Mistake 4 — Ignoring the PM5429WH fold-hinge lock

The foldable model's central hinge must be in the fully locked position before any weight is applied. The lock click is audible and tactile — if you are not sure you heard it, check again. An unlocked hinge under a 150 kg load is a collapse risk.

Mistake 5 — Assembling on a slippery surface

Polished concrete garage floors are common in Brisbane homes and are particularly hazardous during assembly. The frame can slide unexpectedly when you apply torque to bolts. Use a non-slip mat under the entire frame throughout assembly.

FAQ: Pilates Reformer Assembly Australia

How long does it take to assemble a pilates reformer for the first time?

Most first-time assemblers take between 60 and 90 minutes for the PM5429WH (AUD $1,529) and PM5396GY (AUD $1,781) models. The PM5445BE full-track model (AUD $2,249) typically takes 90 to 120 minutes due to the additional leg risers and extended track system. A second person reduces assembly time by approximately 30 minutes and makes the carriage installation step significantly easier.

Do I need any tools beyond what comes in the box?

The included Allen key set covers the majority of assembly steps. An adjustable spanner (13 mm) is useful for the leg riser lock nuts, and a rubber mallet makes shoulder rest installation cleaner. A torque screwdriver is optional but recommended for the PM5396GY and PM5445BE precision spring systems if you want to hit the 18–20 Nm specification on M8 frame bolts.

Can I assemble a pilates reformer by myself, or do I need two people?

All three models can be assembled solo, but the carriage installation step (Step 3) is noticeably easier with a second person to hold the frame steady. The PM5445BE full-track model is the heaviest of the three and is strongly recommended as a two-person assembly job.

What should I do if a part is missing or damaged after delivery to Brisbane?

All ZM Fit reformers come with a 12-month warranty and free delivery to Brisbane. If a component is missing or damaged in transit, contact the support team within 7 days of delivery with your order number and a photo of the affected part. Keep the original packaging until the issue is resolved, as it may be required for the warranty claim process.

How do I know if I have assembled the springs correctly on the PM5396GY precision model?

The PM5396GY uses a secondary locking clip on each spring hook that is unique to the precision spring system. After hooking the spring onto the carriage bar, slide the locking clip toward the hook until it clicks into the closed position. Tug the spring with approximately 10 kg of force — if the hook does not release, the clip is correctly engaged. If the hook releases under that load, re-seat it and re-engage the clip.

Does the PM5429WH foldable reformer need to be fully disassembled to fold for storage?

No. The PM5429WH folds at the central hinge without removing any components. Springs, ropes, and the footbar all remain attached. The folded dimensions are approximately 90 cm × 60 cm, making it suitable for storage in a Brisbane apartment spare room or under a bed. Folding and unfolding takes under 2 minutes once you are familiar with the hinge lock mechanism.
